D/A Converter

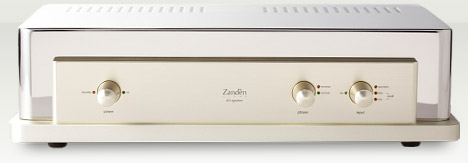

Model 5000 Signature
Introduction
This long-selling product has evolved over the past ten years or so from the original Model 5000 into this, the current Model 5000 Signature. This no-digital filter/no-oversampling multi bit type D/A converter is based on US-patented analog filter technology. It incorporates a multi-bit type Philips TDA-1541A double crown DAC-IC, and the reality of its reproduced sound continues to allure and amaze us even now. Even the very latest DAC-ICs cannot compare to this.
Specification
- DAC-IC
- Philips TDA-1541A: 2 crown
- Digital inputs
- I2S (custom)
- AES/EBU
- BNC
- RCA
- Output impedance
- 3kΩ
- Tube compliment
- 6922 x1
- 6X4 x1
- 6CA4 x2
- Dimensions
- (main) W:398mm / H:103mm / D:254mm
- (power) W:155mm / H:163mm / D:336mm
- Weight
- (main) 9.2kg
- (power) 6.3kg
